Market StallsWalk-In Market Stalls with Counters

Ample sheltered counter space for displaying goods of all types

Walk-In Market Stalls with Counters have a variety of different applications from electronics to makeup sales. There is ample table space beneath the covered area which could also be used in conjuntion with one of our step displays to draw attention to products. Counter height is 30 inches.
A front overhang which would provide protection from the elements for exposed products at the very front of the Market Stall can be added at a small additional cost, please get in touch for details.

Our Walk-In Market Stall with Counters is available in 10ft x 10ft, 12ft x 10ft, 12ft x 12ft, 14ft x 12ft and 14ft x 14ft sizes as a starter kit or steelwork only. As with all our Market Stalls we can customise this stall's design to your own requirements.
  10ft x 10ft 12ft x 10ft 12ft x 12ft
Number of parts refers to the total number of parts that comprises the complete market stall frame.
number of parts
37 37 37
Weight refers to the total weight of the market stall. The first weight covers steelwork only, the second is the combined weight of a starter kit (steelwork, counter, cover and clips).
weight
steelwork / starter kit
90kg / 112kg 95kg / 119kg 100kg / 130kg
Cover to suit refers to the recommended cover size for this market stall. This cover is supplied in the starter kit.
cover to suit
12ft x 18ft
to cover top
and back
2 x 12ft x 9ft
to cover sides

 20ft x 15ft
to cover top
and back
2 x 12ft x 9ft
cut in half
to cover sides
 20ft x 15ft
to cover top
and back
20ft x 15ft
cut in half
to cover sides
Counter to suit refers to the recommended counter for this market stall. This counter is supplied in the starter kit.
counter to suit
6 off 4ft x 2ft
1 off 2ft x 2ft
boards 		7 off 4ft x 2ft
boards 		8 off 4ft x 2ft
boards
Maximum length refers to the longest steel bar used in this market stall. This is helpful when considering how you will transport your market stall.
maximum length
7.0ft 7.0ft 7.0ft
Counters only is the price for the recommended counters for this market stall. This price excludes the stall itself.
price counters only
£36.50 £39.30 £44.90
Steelwork only is the price for steelwork only, excluding counters.
price steelwork only
£226.50 £239.00 £254.20
Starter kit price includes steelwork, counter (if applicable), cover and clips.
price starter kit
£312.00 £335.00 £356.20
Can't find what you're looking for? We manufacture market stalls and other steel fabrications to your own specification. See our Custom Design section.
  14ft x 12ft 14ft x 14ft
Number of parts refers to the total number of parts that comprises the complete market stall frame.
number of parts
37 37
Weight refers to the total weight of the market stall. The first weight covers steelwork only, the second is the combined weight of a starter kit (steelwork, counter, cover and clips).
weight
steelwork / starter kit
105kg / 134kg 111kg / 143kg
Cover to suit refers to the recommended cover size for this market stall. This cover is supplied in the starter kit.
cover to suit
23ft x 18ft
to cover top
and back
20ft x 15ft
cut in half
to cover sides
 23ft x 18ft
to cover top
and back
20ft x 15ft
cut in half
to cover sides
Counter to suit refers to the recommended counter for this market stall. This counter is supplied in the starter kit.
counter to suit
8 off 6ft x 1ft
1 off 2ft x 2ft
boards 		9 off 4ft x 2ft
1 off 2ft x 2ft
boards
Maximum length refers to the longest steel bar used in this market stall. This is helpful when considering how you will transport your market stall.
maximum length
7ft 4.25 inches 7ft 4.25 inches
Counters only is the price for the recommended counters for this market stall. This price excludes the stall itself.
price counters only
£47.70 £53.30
Steelwork only is the price for steelwork only, excluding counters.
price steelwork only
£267.00 £282.00
Starter kit price includes steelwork, counter (if applicable), cover and clips.
price starter kit
£378.60 £399.60
Can't find what you're looking for? We manufacture market stalls and other steel fabrications to your own specification. See our Custom Design section.

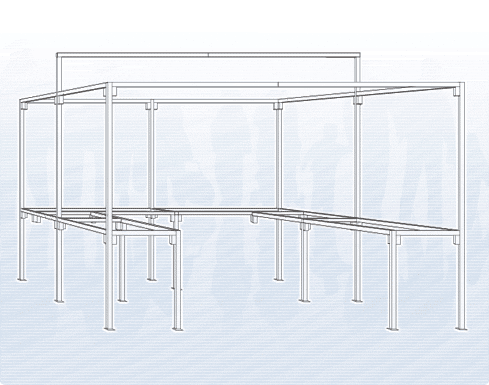

Walk-In Market Stall With Counters Angle 1
Zoom

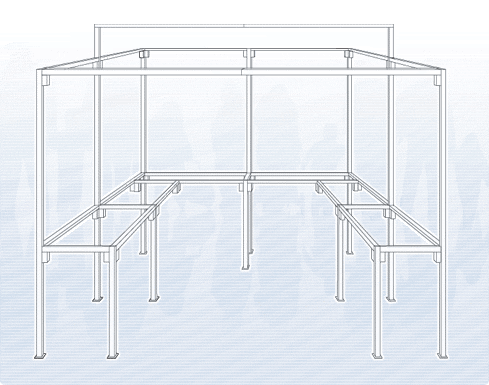

Walk-In Market Stall With Counters Angle 2
Zoom

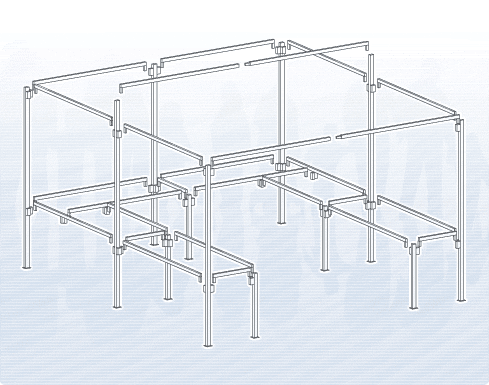

Walk-In Market Stall With Counters Assembly Diagram
Zoom
